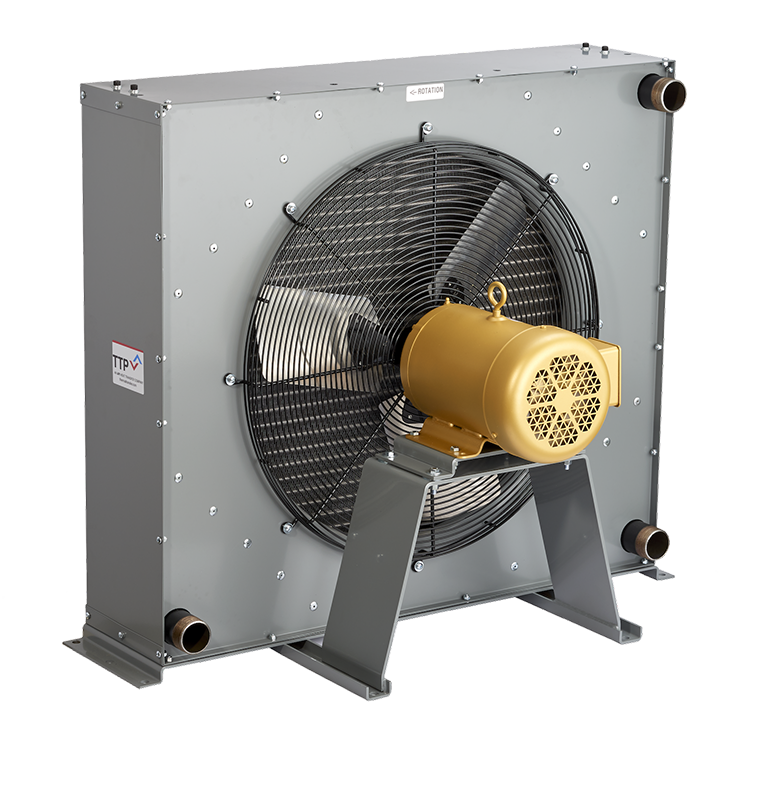

Air-Cooled Heat Exchangers (ACHEs) are workhorse components in many industries where reliable, water-conserving, and safe heat rejection is required.
Their major applications are driven by a few key advantages: they eliminate water consumption, minimize maintenance related to water-side fouling and corrosion, and are often safer for handling flammable fluids.
Here are the major applications of Air-Cooled Heat Exchangers, broken down by industry.
1. Oil & Gas and Petrochemical Industries (The Largest Application)
This is where ACHEs are most prevalent, often serving as the primary cooling method.
- Refinery Crude Distillation Unit:
- Overhead Condensers: Cooling and condensing vapors from the top of the crude distillation column. This is one of the most critical and common services for ACHEs in a refinery.
- Gas Processing Plants:
- Gas Coolers: Cooling natural gas after compression.
- Amine Coolers: Cooling the amine solvent used for removing sour gases (H₂S, CO₂) from the natural gas stream.
- Product Condensers: Condensing natural gas liquids (NGLs) like propane and butane.
- Petrochemical Plants:
- Reactor Effluent Coolers: Quenching the hot stream coming out of chemical reactors (e.g., in ethylene or polyethylene production).
- Process Condensers: Condensing various hydrocarbon vapors in different process streams.
- Upstream Production Facilities:
- Produced Water Coolers: Cooling water before re-injection.
- Lube Oil Coolers: Cooling lube oil for large engines and compressors.
Why ACHEs are preferred here: Water is often scarce at production sites (e.g., deserts, offshore), and the process fluids are frequently flammable, making the leak-proof nature of ACHEs a major safety advantage.
2. Power Generation
ACHEs are crucial in both conventional and renewable power, especially in water-constrained regions.
- Steam Turbine Condensers (Dry-Cooling):
- Application: Condensing the exhaust steam from a turbine. Instead of using a water-cooled condenser and a massive cooling tower, the ACHE directly condenses the steam using air.
- Why: Used in “dry-cooled” power plants located in arid regions where millions of gallons of cooling water are not available.
- Generator Hydrogen Coolers: Cooling the hydrogen gas used to cool the windings of large power generators.
- Air Compressor Aftercoolers: A universal application for cooling compressed air before it enters the plant air system.
- Renewable Energy:
- Concentrated Solar Power (CSP): Condensing the turbine steam using air, as these plants are often located in sunny, dry deserts.
- Geothermal Power: Cooling and condensing the geothermal fluid in binary cycle plants.
3. Chemical and Fertilizer Industries
Similar to petrochemicals, chemical plants rely on ACHEs for their robustness and safety.
- Sulfuric Acid Plants: Cooling process gas streams.
- Ammonia and Urea Plants: Numerous coolers and condensers for synthesis gas and other intermediate streams.
- Polymer and Plastic Production: Cooling reactors and condensing monomer vapors.
4. Industrial and Manufacturing Processes
ACHEs are found in virtually any large industrial facility for general utility services.
- Compressor Aftercoolers: This is a universal application. Cooling air after compression is essential for efficiency and to remove moisture. ACHEs are the standard choice.
- Engine Jacket Water Coolers: Cooling the circulating water for large industrial engines and generators.
- Hydraulic Oil Coolers: Removing heat from hydraulic systems in large machinery (e.g., injection molding machines, steel rolling mills).
- Tube Oil Coolers: For large rotating equipment like turbines, gearboxes, and compressors.
5. HVAC and Refrigeration
While smaller and configured differently, the core principle is the same.
- Refrigeration Condensers: The “outdoor unit” of a commercial refrigeration system or a large chiller is an air-cooled condenser, rejecting heat from the refrigerant to the atmosphere.
- Air Conditioning Condensers: Similarly, the outdoor units for home and commercial AC systems are ACHEs.
